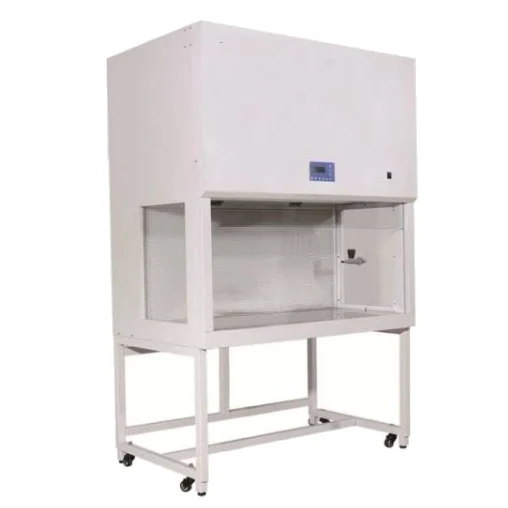

Vertical Laminar Air Flow
Top-mounted filtration directs a uniform stream of clean air downward over the work surface to reduce particulate contamination of the product.
Features and configuration
Downward air delivery
Filtered air moves from the ceiling filter toward the work zone.
Cleanable work area
Stainless-steel worktops combine with transparent side panels and a sliding or folding front sash.
Operating features
Task lighting, filter-pressure indication and optional UV-C equipment with interlocks support routine operation.
Typical specifications
| Cleanliness target | ISO Class 5 |
|---|---|
| Nominal airflow velocity | 0.45 m/s ± 20% |
| Worktop | SS 304 or SS 316 |
| Cabinet | Powder-coated CRCA or stainless steel |
| Filtration | HEPA with optional ULPA upgrade |
| Typical illumination | More than 800 lux |
| Supply options | 110 V / 60 Hz or 220 V / 50 Hz |
Applications
- Product protection
- Clean assembly
- Electronics and optics
- Controlled sample handling

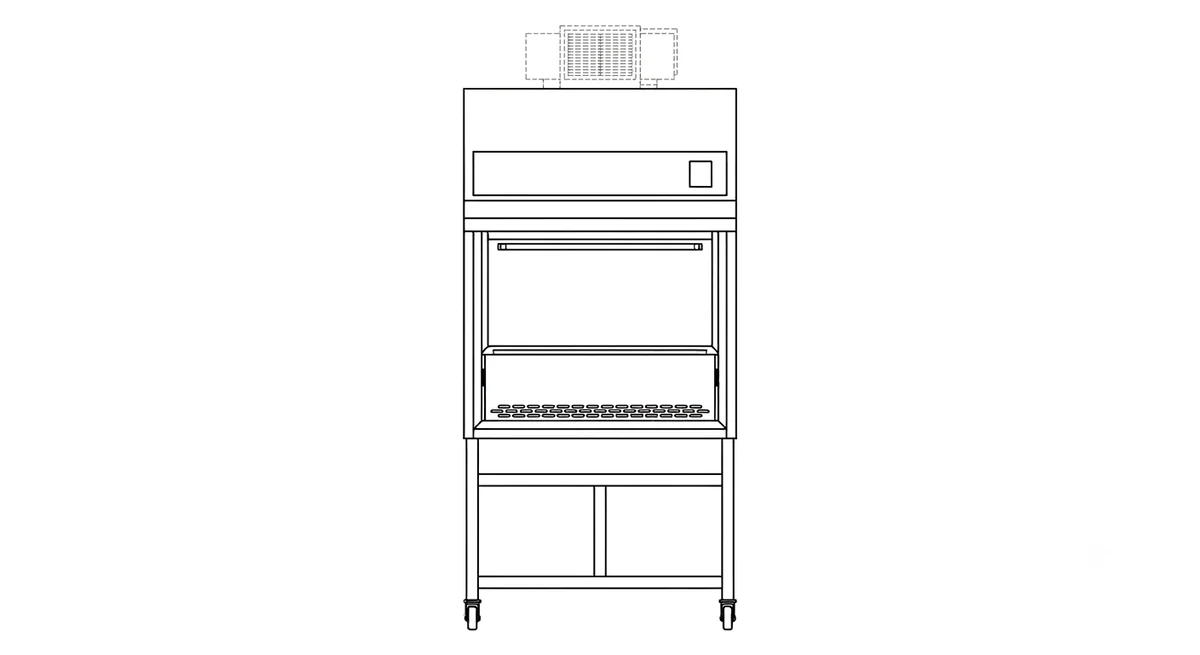

Vertical Laminar Air Flow Configuration
A front-elevation drawing and an additional workstation photograph from the product range.
Views and diagrams
Final sizes, options and performance depend on the selected configuration. Product illustrations are representative. Contact the team to confirm suitability, pricing and delivery.
