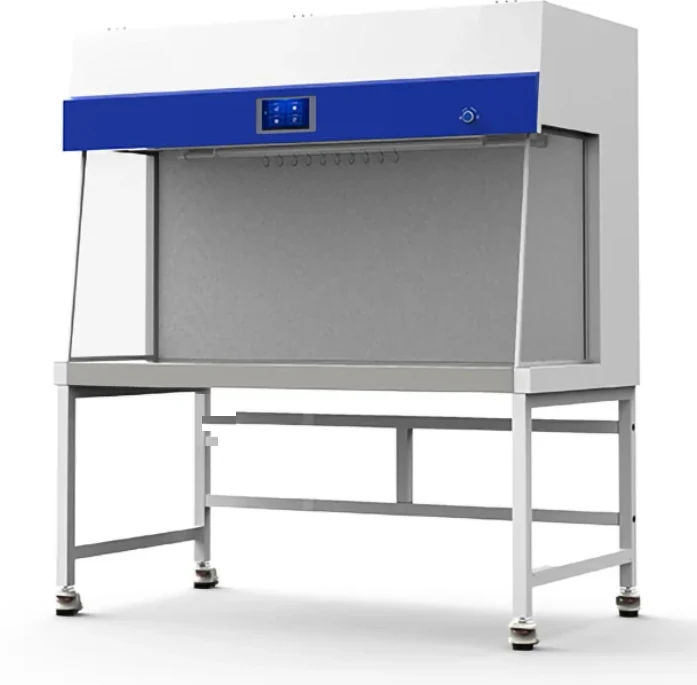

Horizontal Laminar Air Flow
Rear-mounted filtration delivers clean air horizontally across the work surface toward the front opening.
Features and configuration
Back-to-front airflow
Unidirectional airflow sweeps particles away from the protected work area.
Open working access
The front remains open during operation; an optional cover can protect the inactive workspace.
Monitoring and lighting
Filter-pressure indication, airflow display, task lighting and optional UV timers can be integrated.
Typical specifications
| Cleanliness target | ISO Class 5 |
|---|---|
| Air velocity range | 0.30–0.45 m/s |
| Work surface | SS 304 |
| Cabinet | Powder-coated CRCA or stainless steel |
| Filtration | HEPA; ULPA option |
| Typical illumination | At least 300 lux |
| Supply options | 110 V / 60 Hz or 220 V / 50 Hz |
Applications
- Clean product handling
- Component assembly
- Electronics
- Optics
Final sizes, options and performance depend on the selected configuration. Product illustrations are representative. Contact the team to confirm suitability, pricing and delivery.
