Sri Yantra Clean TechCleanroom Access

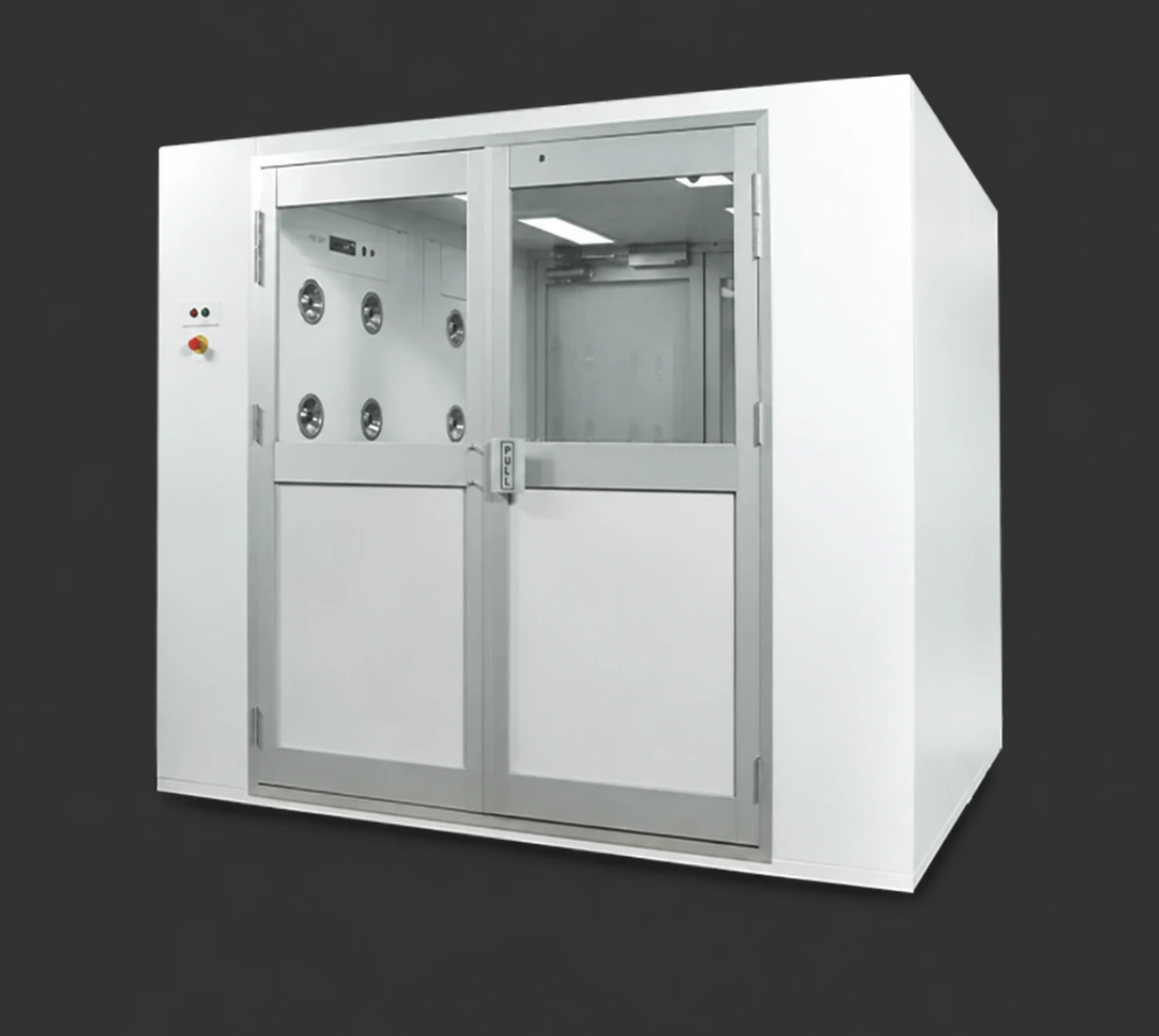

Air Showers
An enclosed entry chamber that uses high-velocity filtered air to remove loose particles from personnel or equipment before cleanroom entry.
Features and configuration
Interlocked access
Door interlocking separates the entry, air cycle, purge and exit stages.
Targeted cleaning
Adjustable wall and ceiling nozzles direct air over garments and exposed surfaces.
Flexible configurations
Single-person, two-person, multi-person tunnel and cargo formats support different traffic volumes.
Typical specifications
| Air velocity | 20–25 m/s |
|---|---|
| Cycle time | 10–180 seconds |
| Filtration | HEPA or ULPA |
| Construction | Stainless steel or powder-coated steel |
| Single-person exterior | 1400 × 1000 × 2100 mm |
| Two-person exterior | 1400 × 1500 × 2100 mm |
| Cargo exterior | 2000 × 2500 × 2500 mm |
Applications
- Pharmaceuticals
- Microelectronics
- Food processing
- Precision manufacturing

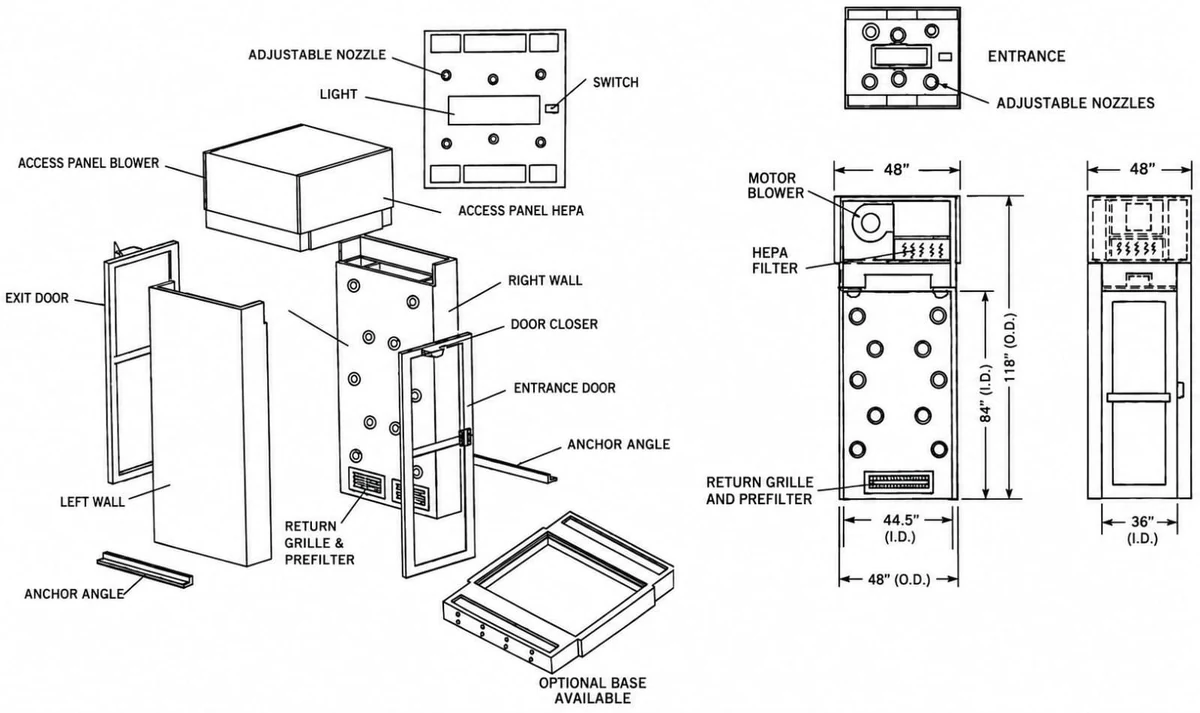

Air Shower Construction
Component arrangement and dimensional drawing for the air-shower assembly.
Views and diagrams
Final sizes, options and performance depend on the selected configuration. Product illustrations are representative. Contact the team to confirm suitability, pricing and delivery.
