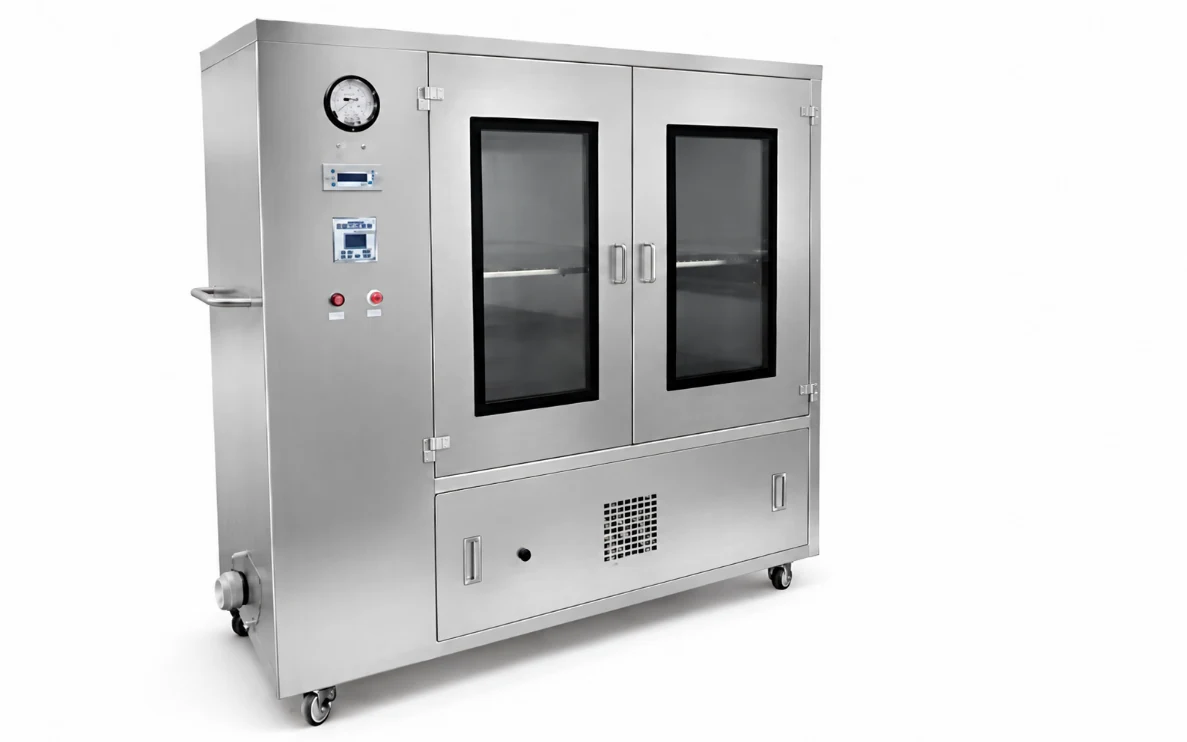

Mobile Laminar Air Flow
A mobile clean-air workstation for protected material transfer and temporary clean zones. Castor-mounted construction allows the unit to move between process areas.
Features and configuration
Filtered airflow
HEPA or ULPA filtration supplies a uniform stream of clean air across the protected work zone.
Designed for transfer
Lockable PU castors, stainless-steel construction and optional enclosure panels or strip curtains.
Operating options
Battery backup maintains airflow in transit. Differential-pressure monitoring and task lighting support daily use.
Typical specifications
| Cleanliness target | ISO Class 5 / Class 100 |
|---|---|
| Airflow | Vertical or horizontal |
| Nominal air velocity | 0.45 ± 0.05 m/s |
| Construction | SS 304 or SS 316 |
| Power supply | 230 V, 50 Hz, single phase |
| Work areas W × D × H | 610 / 915 / 1220 / 1830 × 610 × 610 mm |
Applications
- Pharmaceutical transfer
- Healthcare
- Research
- Electronics
Final sizes, options and performance depend on the selected configuration. Product illustrations are representative. Contact the team to confirm suitability, pricing and delivery.
